machined part LHS replaces part on RHS. Bushing is stepped from both ends
Stepped bushing (steel machined part)
Author Archives: frank.c.reynolds
Garmin Street Pilot GPS bracket with elastomer isolators (example of sheet metal part)

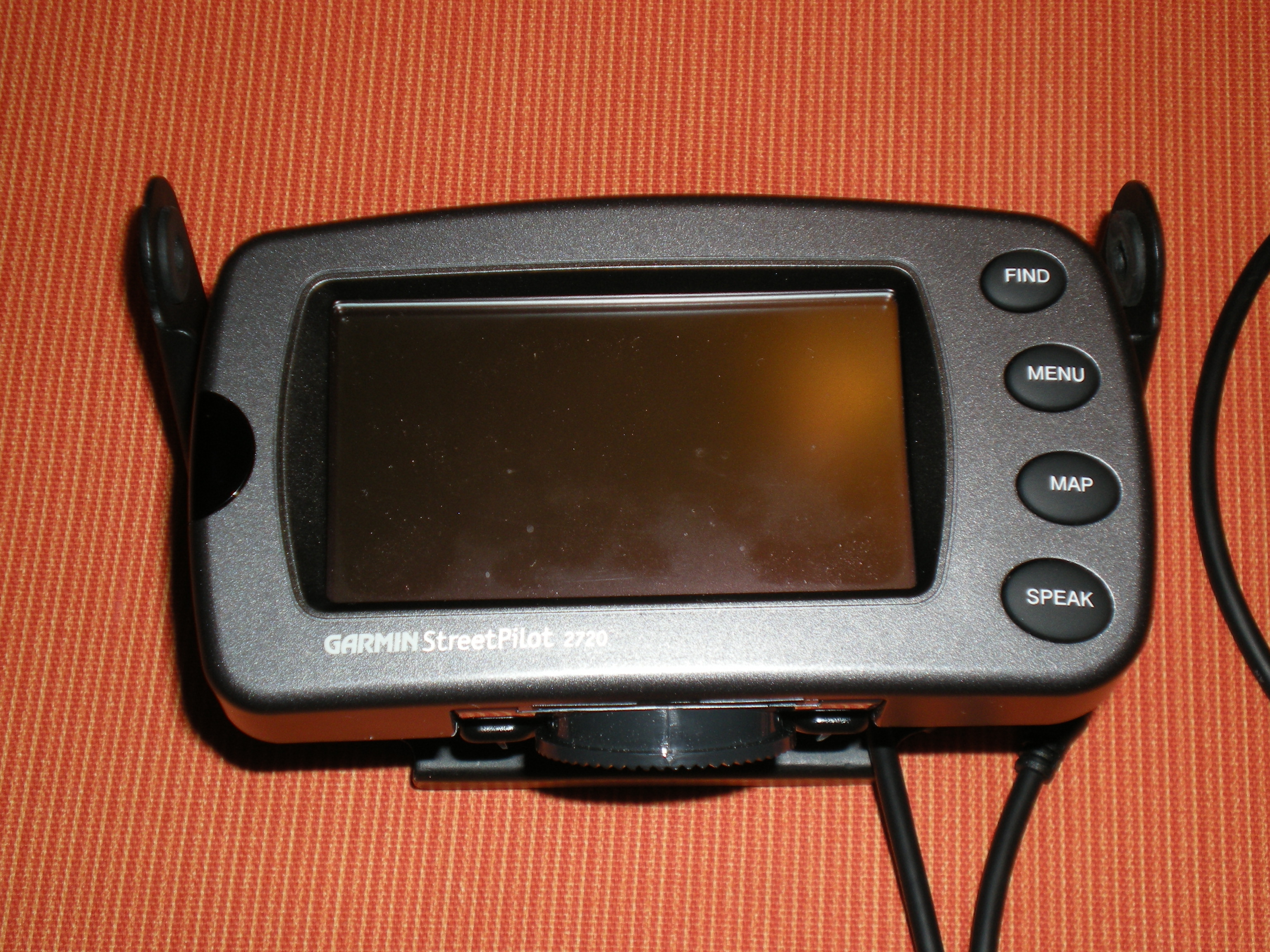

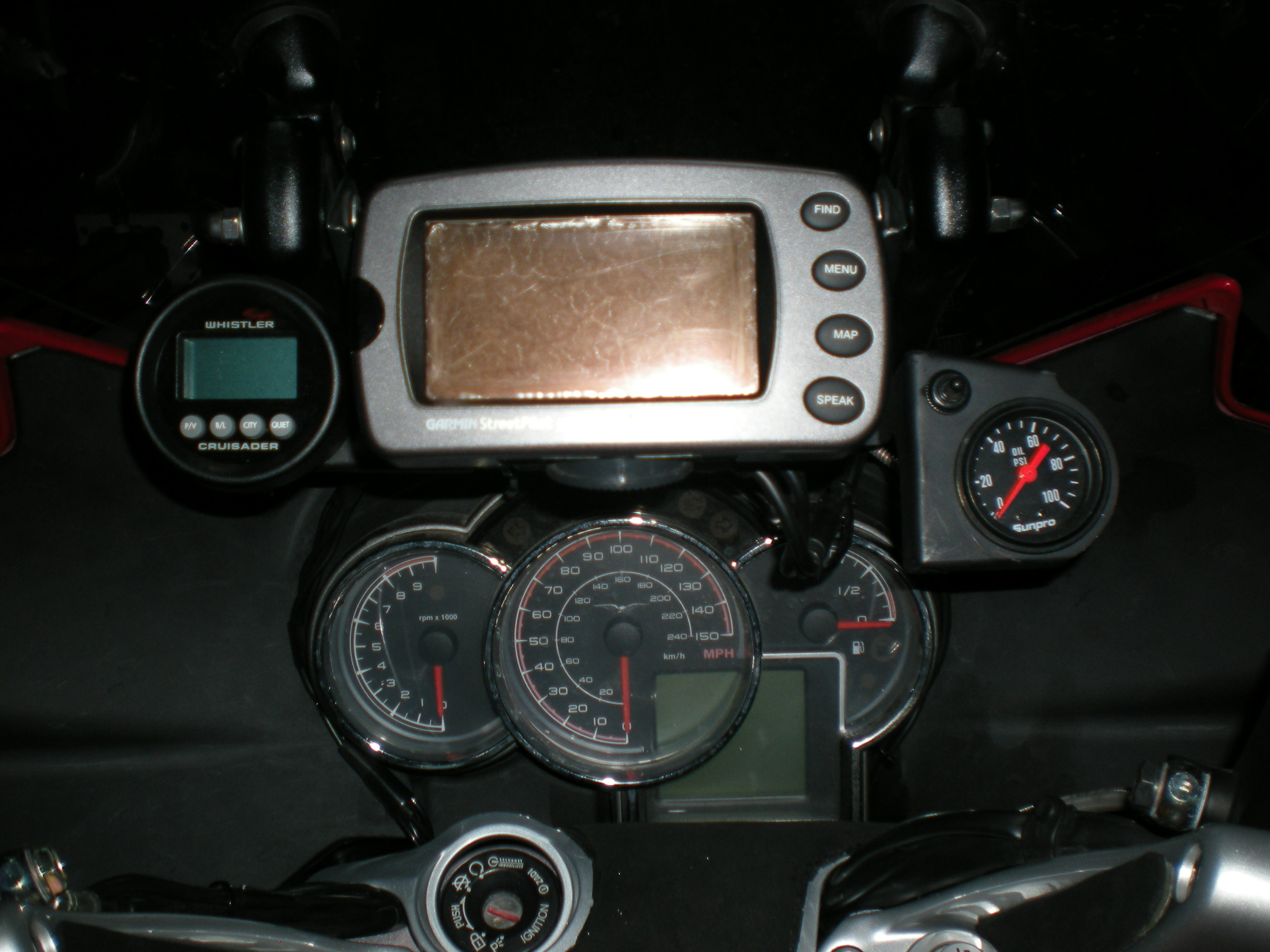

GPS shown installed
- GPS with bracket installed on Guzzi Norge windshield support screws

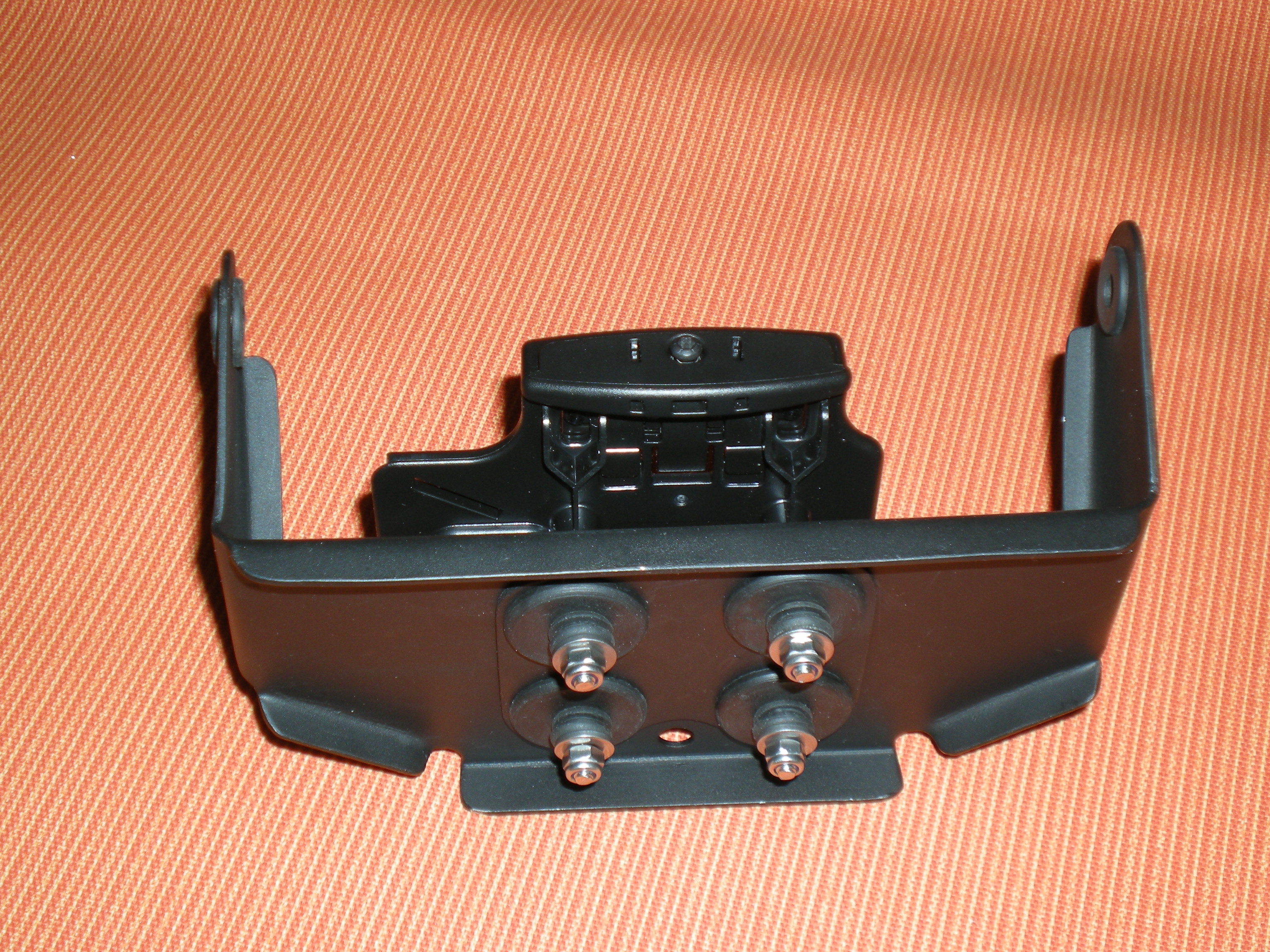

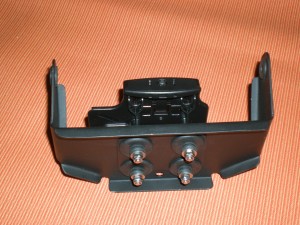

- bottom view
showing isolators

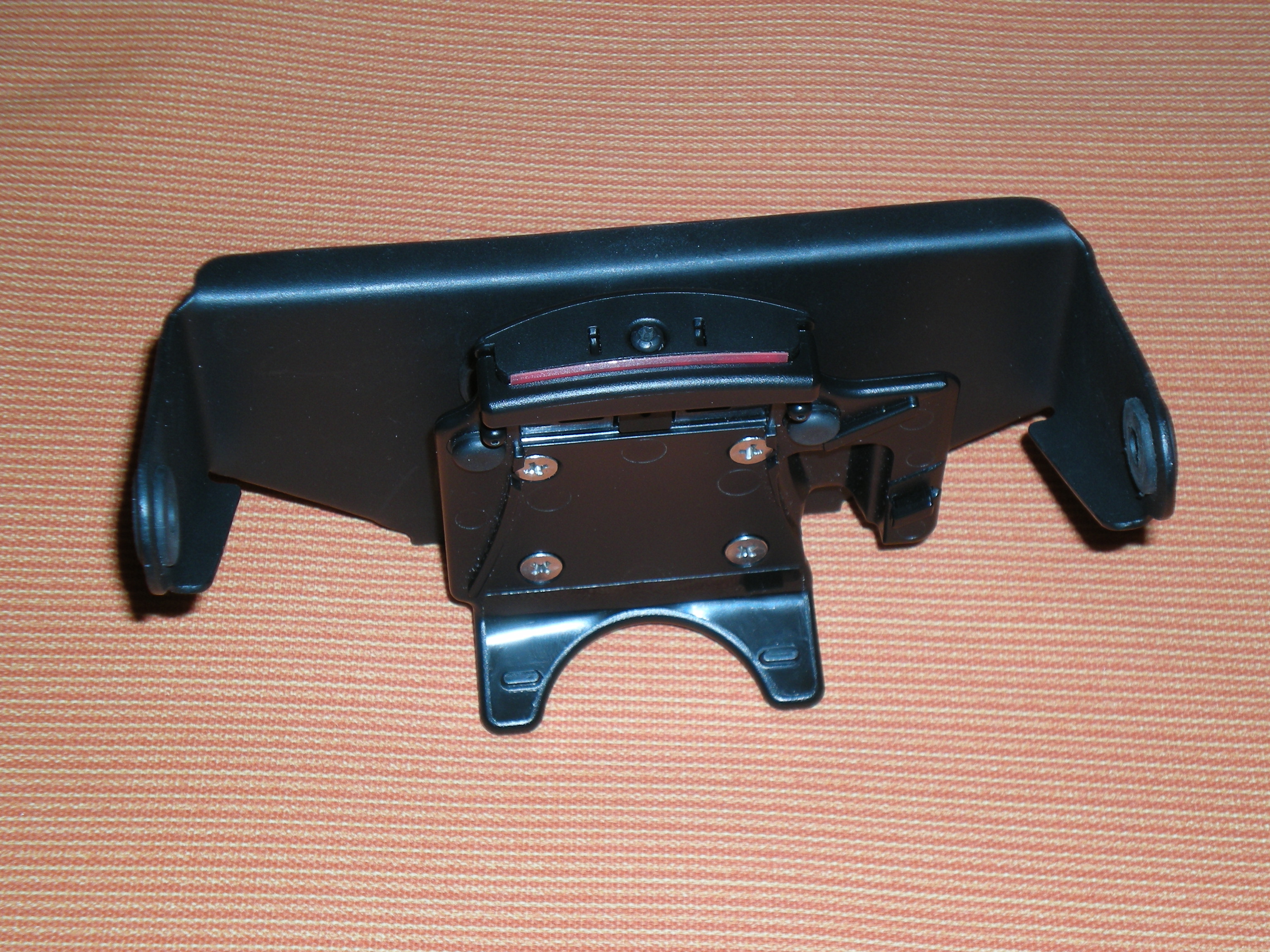

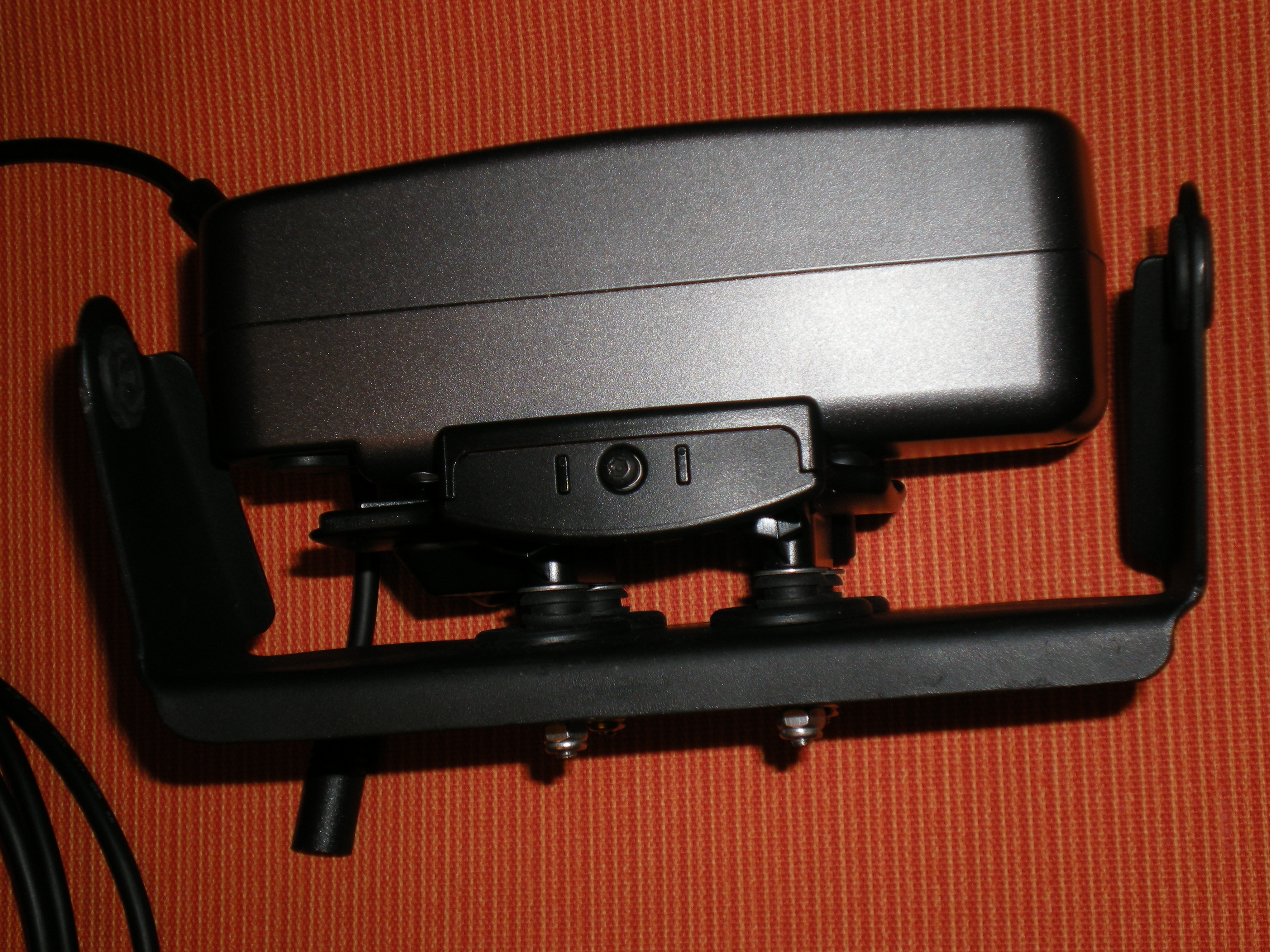

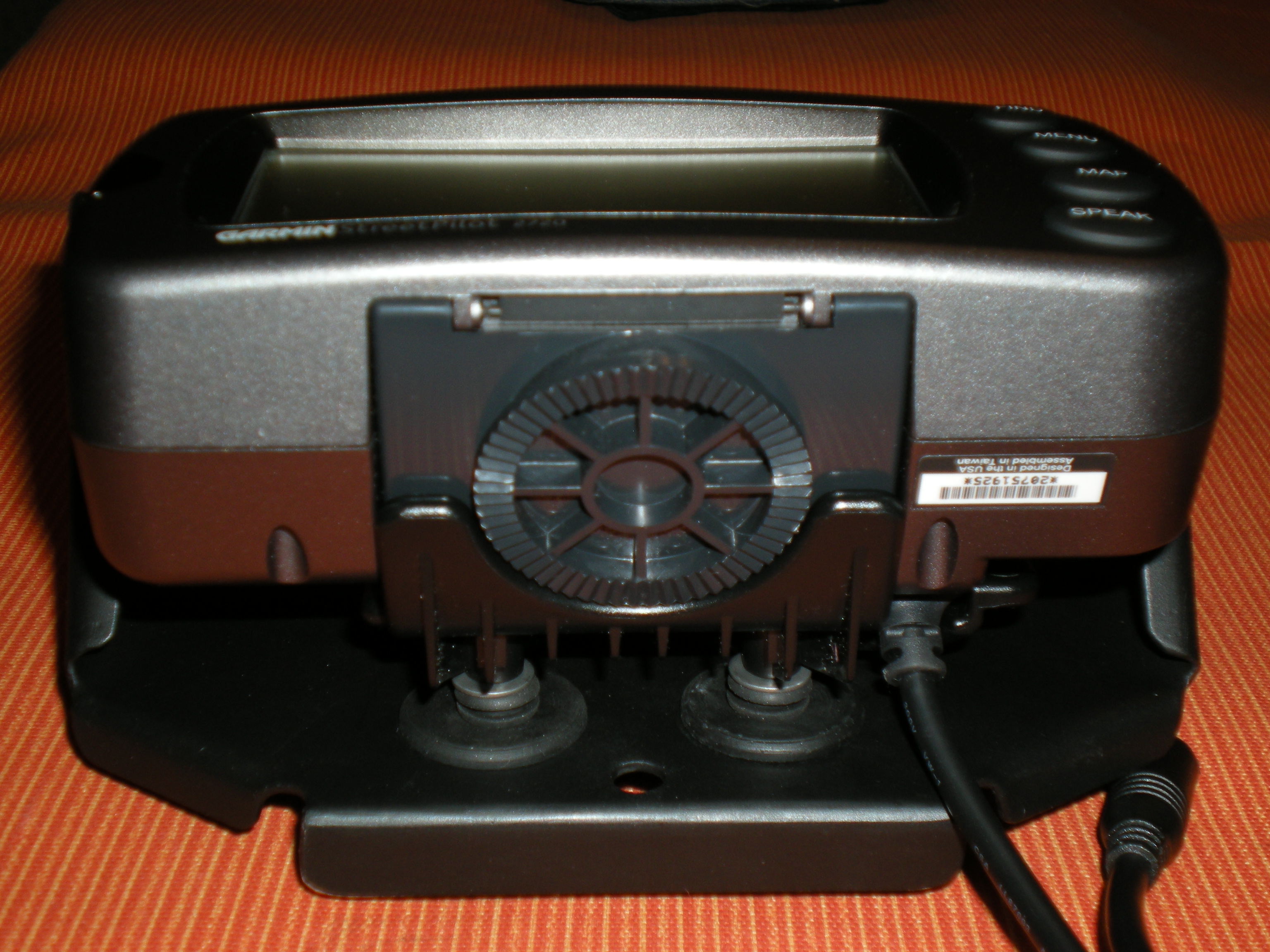

- rear view showing isolators
- Garmin mounting bracket attached

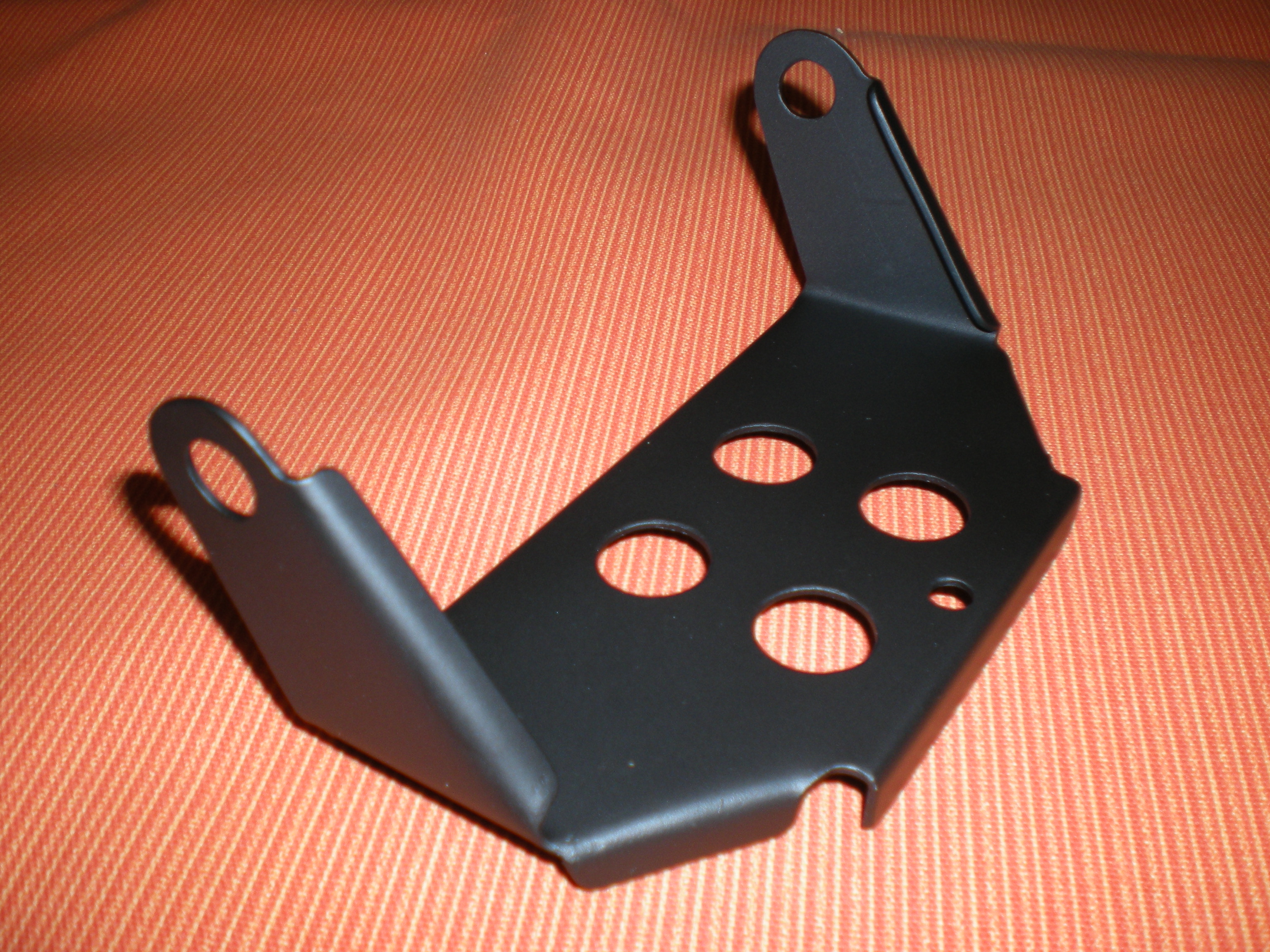

- 6061 al -alloy bracket for GPS support
Moto Guzzi Camshaft sprocket holding tool (for sale – data sheet link below)
Moto Guzzi Inner spark plug socket wrench (for sale – data sheet link below)
Moto Guzzi Oil pressure gauge adapter (for sale – data sheet shown below)
Moto Guzzi alternator Tool (for sale – data sheet shown below)
For Sale
Current listing of items for sale – more information on the following items can be provided by contacting frank.c.reynolds@ddraig-goch-engineering.com
1. Air Max 83.606 air cylinder, 2.5″ a 6″ stroke, press 250 psi max , unused $25
Examples of Custom Products
The following are custom designed and manufactured items showing examples of capabilities

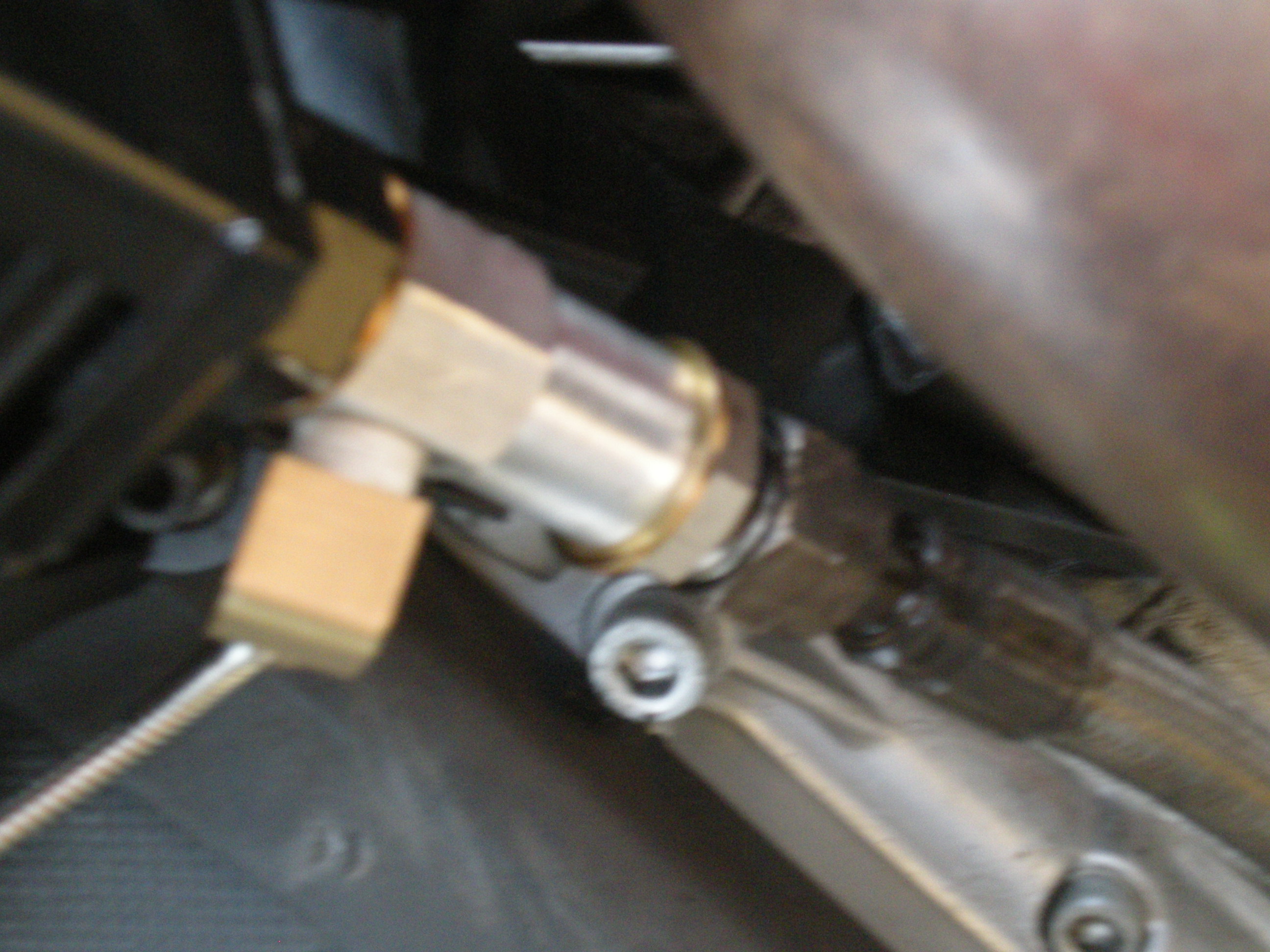

Al-alloy fitting for
tapping off pressure at oil cooler

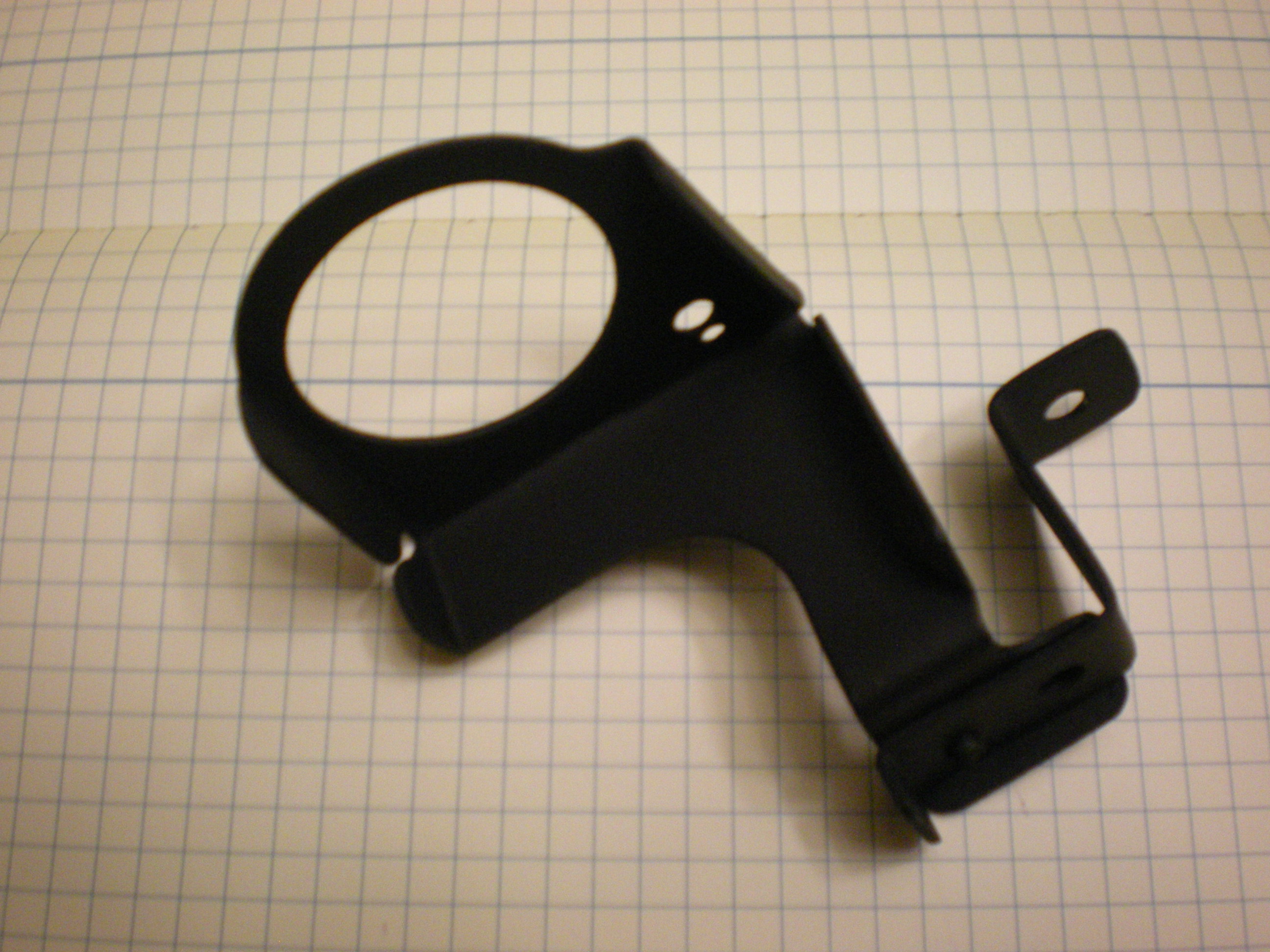

6061 al -alloy oil
pressure gauge bracket

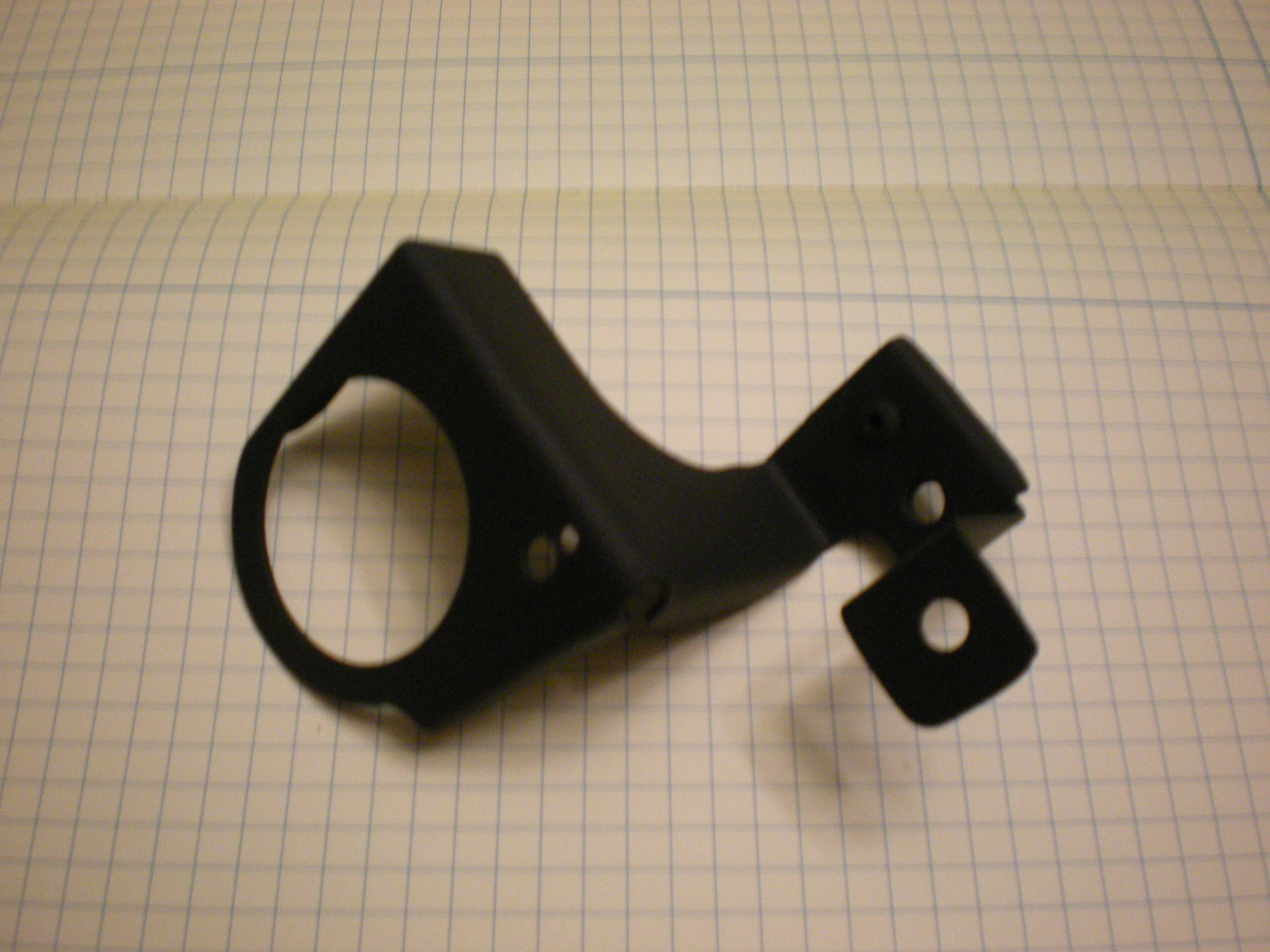

6061 al -alloy oil
pressure gauge bracket

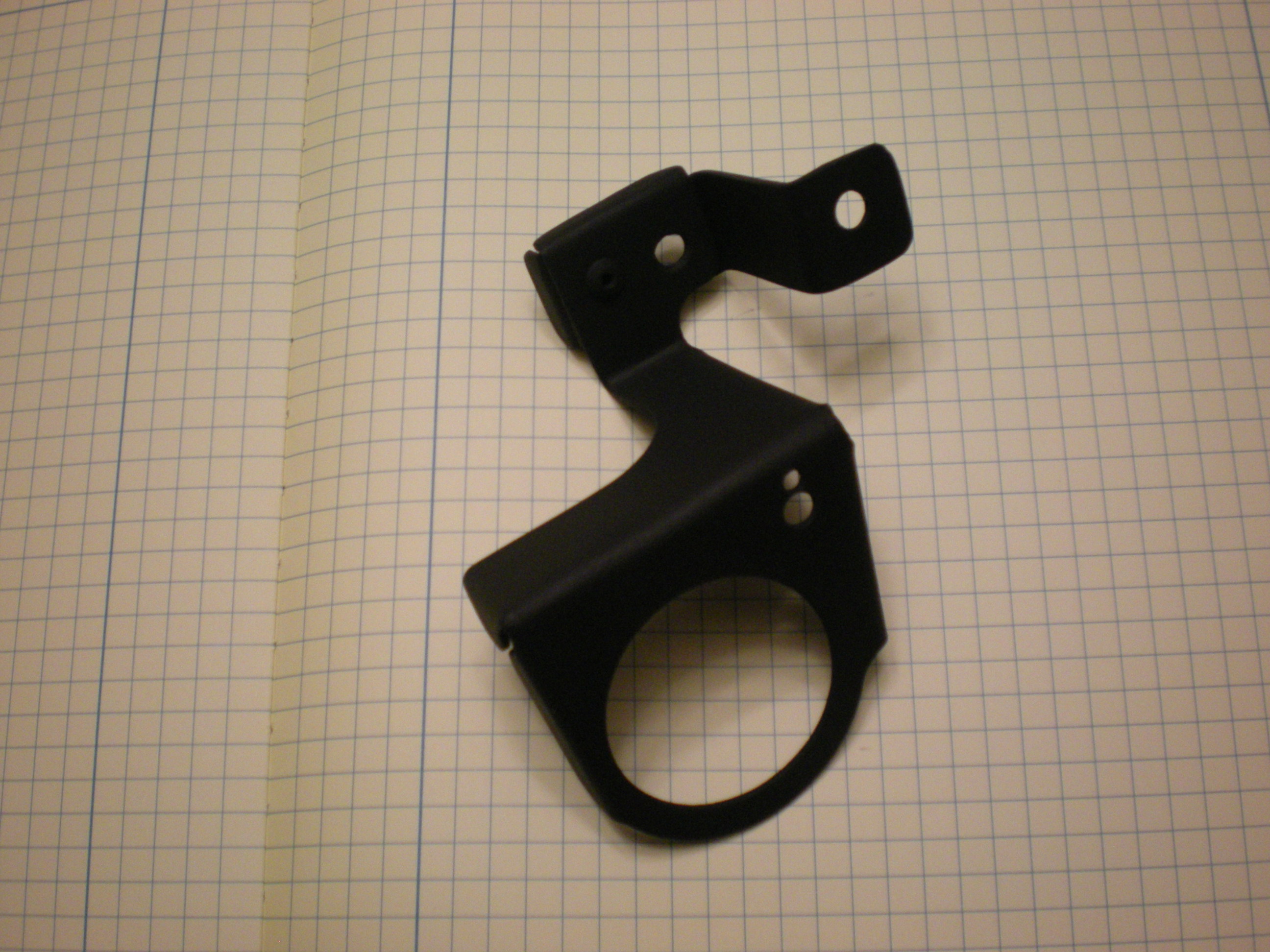

6061 al -alloy oil
pressure gauge bracket

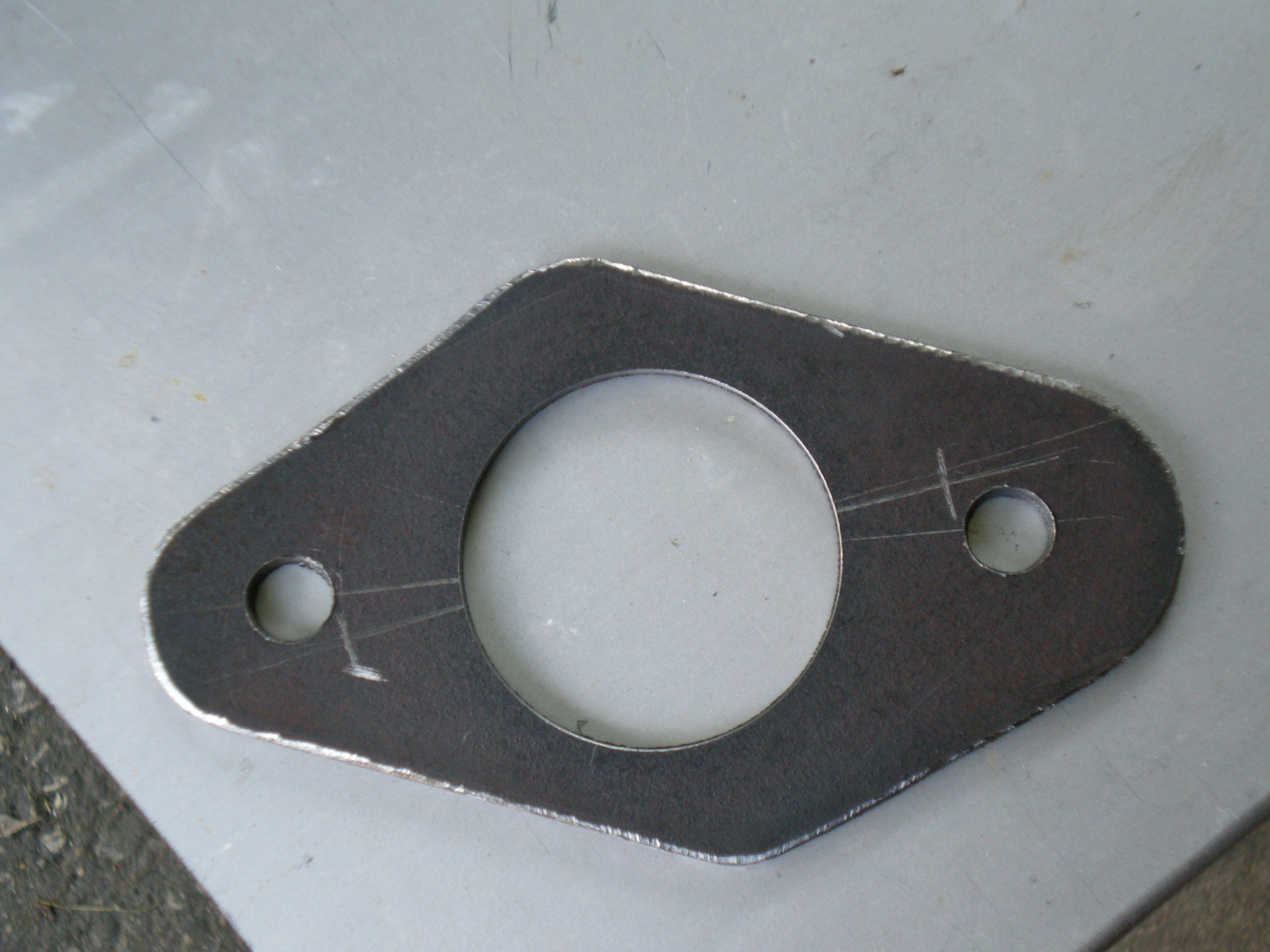

1/4 inch steel custom
exhaust flange
